Technicial Specifications
| PART NO | PICTURE | STOCK CODE | PART NAME | DIMENSION | PIECE |
|---|---|---|---|---|---|
| 1 |
|
267102 | TORSION SPRING RING ( THICK ) | 1 | |
| 2 |
|
282101 | ADJUSTING MECHANISM CASING | 1 | |
| 3 |
|

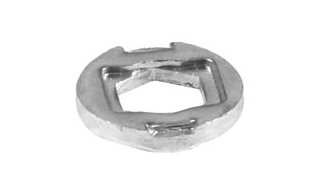

281101 | MECHANISM CLIPS | 1 | |
| 4 |
|

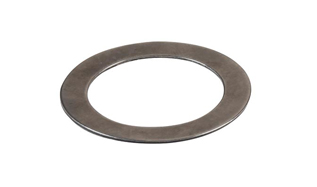

273104 | MECHANISM WASHER | 35*49,50*1 | 1 |
| 5 |
|
267101 | TORSION SPRING RING ( THIN ) | 1 | |
| 6 |
|

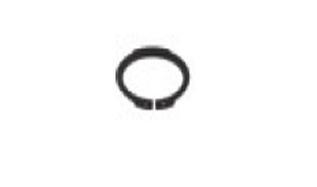

281102 | MECHANISM CLIPS | 1 | |
| 7 |
|

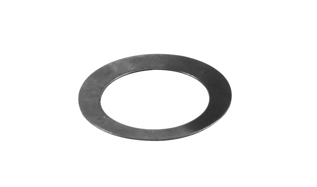

273102 | MECHANISM CONICAL WASHER | 32*45,*1,80 | 1 |
| 8 |
|

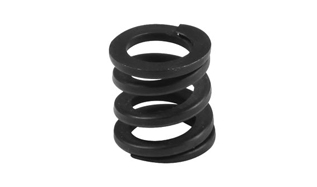

272102 | MECHANISM COMPRESSION SPRING | 1 | |
| 9 |
|
272101 | MECHANISM TORSION COCKING SPRING | Ø37,25*Ø1,90/21,75 | 1 |
| 10 |
|

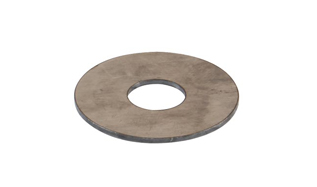

273103 | COMPRESSION SPRING LINER | Ø32*Ø45*0,7 | 1 |
| 11 |
|
261102 | CALIBRATION BOLT (W/GROOVE) / SHORT | M24x76 | 1 |
