Technicial Specifications
| PART NO | PICTURE | STOCK CODE | PART NAME | DIMENSION | PIECE |
|---|---|---|---|---|---|
| 1 |
|

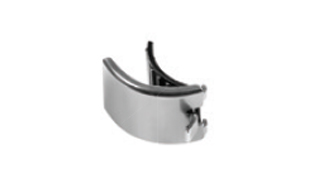

208102 | ROLLER BEARING | 2 | |
| 2 |
|
263102 | PIN BUSH | 42*38*30 | 3 |
| 3 |
|
264103 | PIN PLUG | 42*28 | 1 |
| 4 |
|
264102 | PIN CAP | 42*17 | 1 |
| 5 |
|
262104 | PIN DUST RUBBER GREEN | 2 | |
| 6 |
|
272103 | SHAFT HOUSING SPRING | 2 | |
| 7 |
|
273101 | WASHER | 2 | |
| 8 |
|
264107 | CALIPER HEAD CAP LONG | Ø25,5*15 | 1 |
| 9 |
|

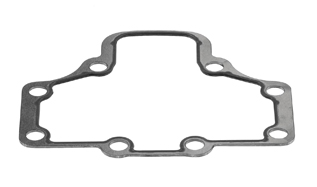

271101 | CALIPER HEAD GASKET | 1 | |
| 10 |
|
270101 | CALIPER HEAD SEAL | 1 | |
| 11 |
|
262103 | MECHANISM DUST RUBBER GREEN | 1 | |
| 12 |
|
260104 | PIN | 38X118 | 1 |
| 13 |
|
260103 | PIN | 38X76 | 1 |
| 14 |
|
261108 | BLACK PIN BOLT | 40*10*1 | 8 |
| 15 |
|
261107 | PIN BOLT | 16*1,5*120 | 1 |
| 16 |
|
207101 | CALIPER LEVER | 1 | |
| 17 |
|
205504 | CALIPER BRAKE LINING PLATE (W/GROOVE) -L | 1 | |
| 18 |
|
201117 | ADJUSTING MECHANISM (W/PIN) | 1 | |
