Technicial Specifications
| PART NO | PICTURE | STOCK CODE | PART NAME | DIMENSION | PIECE |
|---|---|---|---|---|---|
| 1 |
|

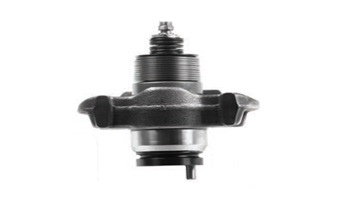

201116 | ADJUSTING MECHANISM (W/PIN) | 17.5" | 1 |
| 2 |
|
208102 | ROLLER BEARING | 2 | |
| 3 |
|
205402 | CALIPER BRAKE LINING PLATE (W/GROOVE) -R | 1 | |
| 4 |
|
262102 | PIN DUST RUBBER GREEN | 2 | |
| 5 |
|
263104 | PIN BUSH | 34*30*25 | 1 |
| 6 |
|

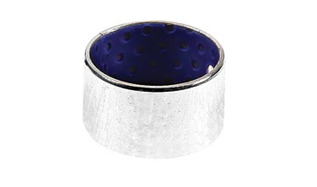

263101 | PIN BUSH | 34*30*20 | 2 |
| 7 |
|

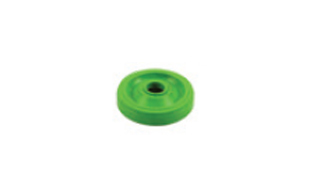

270103 | COVER SEAL | 1 | |
| 8 |
|

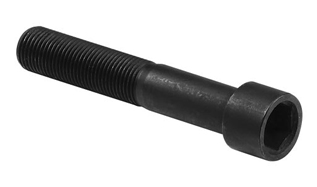

261106 | PIN BOLT BLACK | M16*1,5*90 | 1 |
| 9 |
|

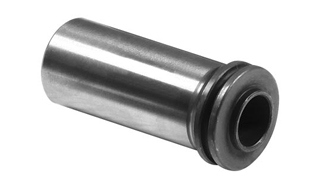

260101 | PIN | 30x75 | 1 |
| 10 |
|
272103 | SHAFT HOUSING SPRING | 2 | |
| 11 |
|
264107 | CALIPER HEAD CAP LONG | Ø25,5*15 | 1 |
| 12 |
|
271101 | CALIPER HEAD GASKET | 1 | |
| 13 |
|
270101 | CALIPER HEAD SEAL | 1 | |
| 14 |
|
262103 | MECHANISM DUST RUBBER GREEN | 1 | |
| 15 |
|

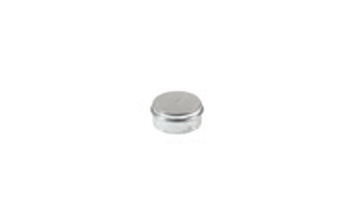

264101 | PIN PLUG | 34*17 | 2 |
| 16 |
|
261104 | PIN BOLT | 16x1,5x70 | 1 |
| 17 |
|
261108 | BLACK PIN BOLT | 40*10*1 | 8 |
| 18 |
|

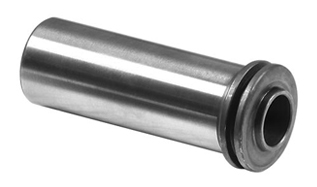

260102 | PIN | 30X88 | 1 |
| 19 |
|
207101 | CALIPER LEVER | 1 | |
