Technicial Specifications
| PART NO | PICTURE | STOCK CODE | PART NAME | DIMENSION | PIECE |
|---|---|---|---|---|---|
| 1 |
|
360112 | PIN | 33/35x66 | 1 |
| 2 |
|
361126 | BRAKE PAD BOLT | M10x1.25*20 | 2 |
| 3 |
|
360113 | PIN | 35x128 | 1 |
| 4 |
|
371117 | COVER GASKET | 1 | |
| 5 |
|
367107 | PIN RING | 42*35*3 | 2 |
| 6 |
|
367120 | ELSA2 RING | 32/30x28x4,75 | 1 |
| 7 |
|
370116 | SEAL STOWED | 1 | |
| 8 |
|
341104-2 | INDICATOR SPRING | 1 | |
| 9 |
|
361108 | PIN BOLT | M20*1,5*88mm | 1 |
| 10 |
|
364107 | RUBBER CAP | 1 | |
| 11 |
|
361107 | PIN BOLT M20*1,5*150 MM | M20*1,5*150mm | 1 |
| 12 |
|
362105 | PLUNGER DUST RUBBER | 2 | |
| 13 |
|
380101 | MERITOR BEARING 16*38 MM | Ø16*38 | 2 |
| 14 |
|
370106 | SEAL | 12*22*7 | 1 |
| 15 |
|

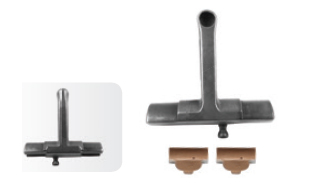

307111 | LEVER | 1 | |
| 16 |
|
364108 | PIN PLUG | 44*28 | 2 |
| 17 |
|
362102 | PIN DUST RUBBER | 2 | |
| 18 |
|
361120 | BOLT | M8x1,25x45 | 8 |
| 19 |
|
308108 | ROLLER BEARING | 2 | |
| 20 |
|
341104-1 | INDICATOR STICK | 1 | |
| 21 |
|
361114 | PIN BOLT | M16*1,5*40 | 4 |
| 22 |
|
311120-1 | BRAKE PAD SHEET | 1 | |
| 23 |
|
307104-1 | LEVER SINGLE | 2 | |
| 24 |
|
303401-4 | COMPRESSION SPRING | 1 | |
| 25 |
|
303401 | MANUEL ADJUSTING GEAR - R | 1 | |
| 26 |
|
301104-M | CALIPER MECHANISM SET | 1 | |
